UV-C air quality systems for HVAC professionals

Cleaner air,
installed in minutes.

A UV-C lamp power supply for residential air handlers. Premium components. Sealed. Packed for a single-trip install.

Get a kit See the product →

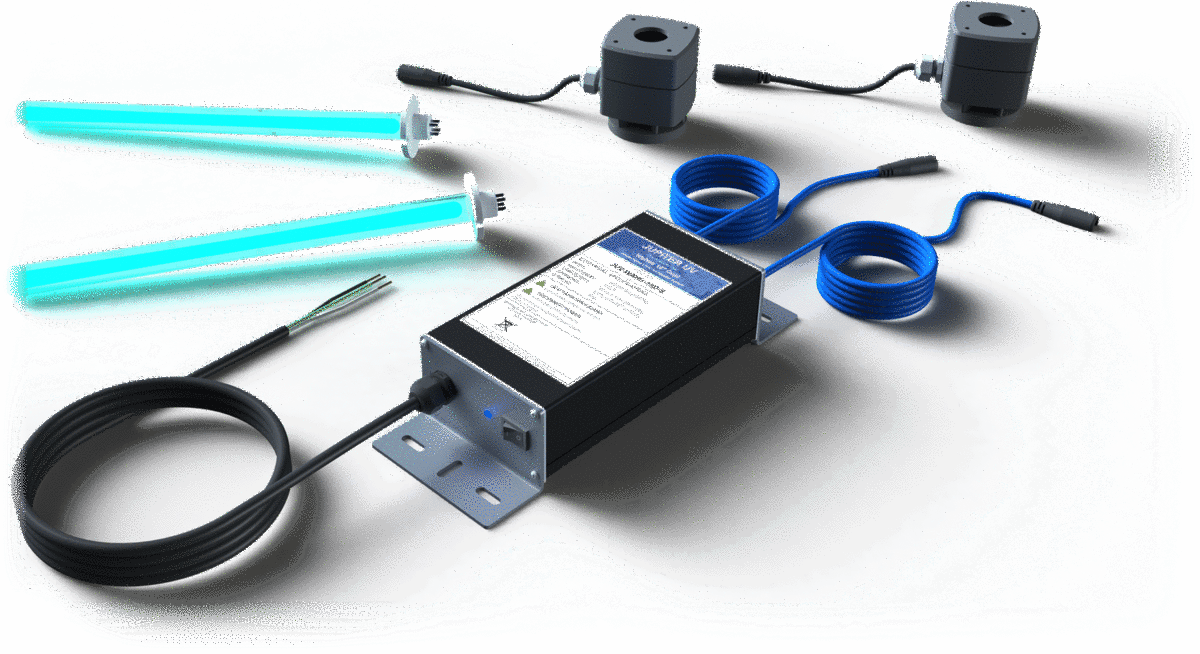

WAHU UV-C kit — power supply, lamps, mounts and cables laid out
Where it lives

Drops into any
modern AHU.

Mounts on the air handler. Lamps live in the airstream above the coil. No ductwork modifications. No second-trip surprises.

How it installs Talk to us →

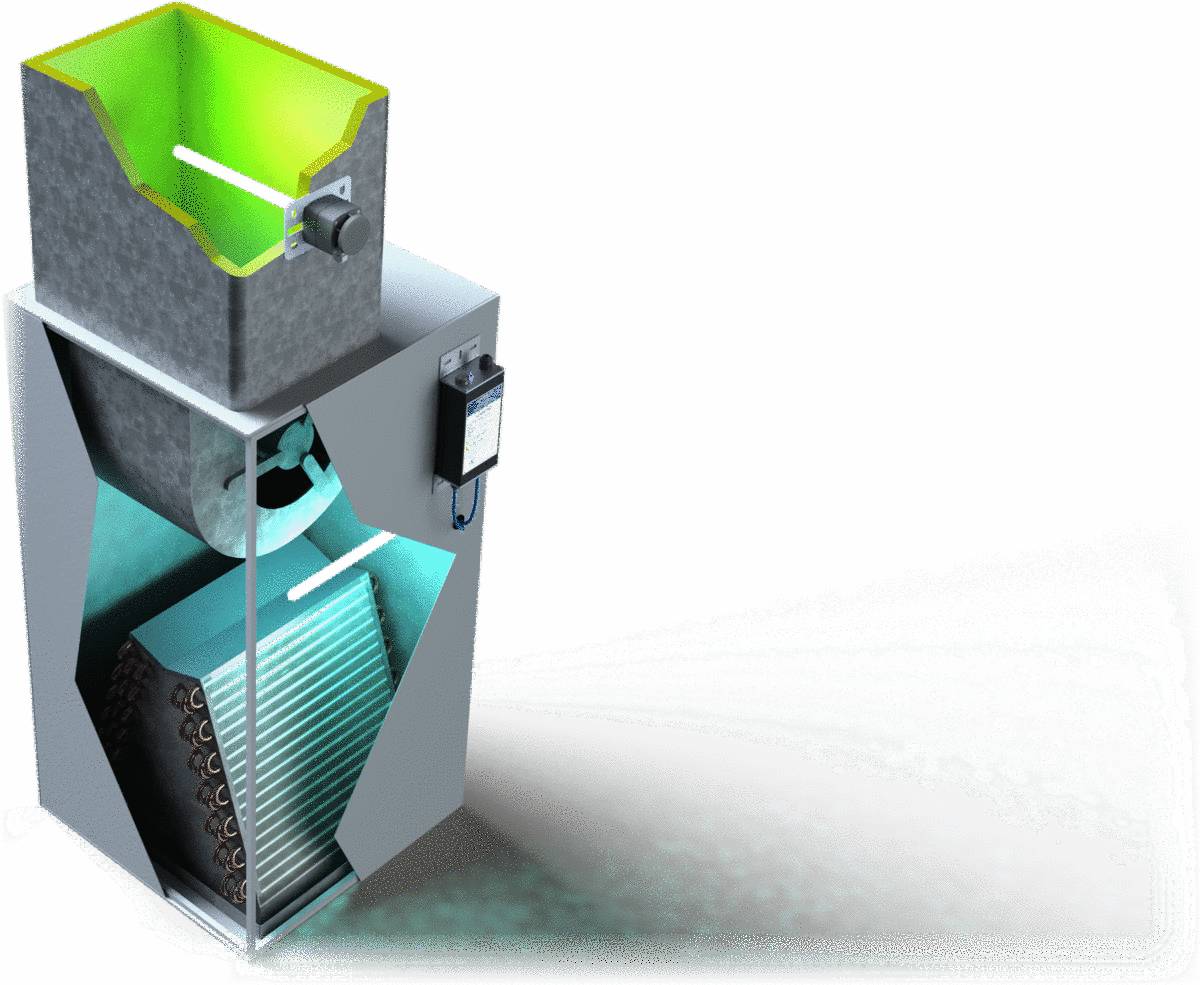

WAHU UV-C system installed in a residential AHU with UV lamps illuminating the airstream
The Product

JUV-WAHU-15D-S

Dual-lamp UV-C for whole-house air handlers. Two 15" lamps. Engineered enclosure. Built for the contractor who installs dozens a year.

⚡

Universal voltage input

Residential and light-commercial supplies. Single splice. No jumpers.

⚙

Dual 15" lamps

Low-pressure mercury vapor. Factory-matched to the ballast.

▢

Engineered enclosure

Anodized sealed aluminum. Built for the AHU environment.

↻

24-month lamp life

Two-year service cycle. Lower homeowner lifetime cost.

For Contractors

The upsell that fits every install.

Your customer just made their biggest mechanical purchase in a decade. The WAHU is the natural add-on. Fifteen-minute install, one more line on the invoice, and a UV-C system your customer can see running.

  • Bring your tools — we packed the rest. Every kit ships complete. Open the box. Install the system. Close the box. No return trips to the truck.
  • Made to upsell. Every new HVAC install is a WAHU opportunity. Premium add-on. Premium margin.
  • Faster install. Less time per call. More jobs per day.
  • Stays installed. Sealed anodized aluminum enclosure, built for the AHU environment.
  • Repeat service revenue. Lamp replacement at 24 months. Built into your service rotation per customer.
Talk to us about a contractor account

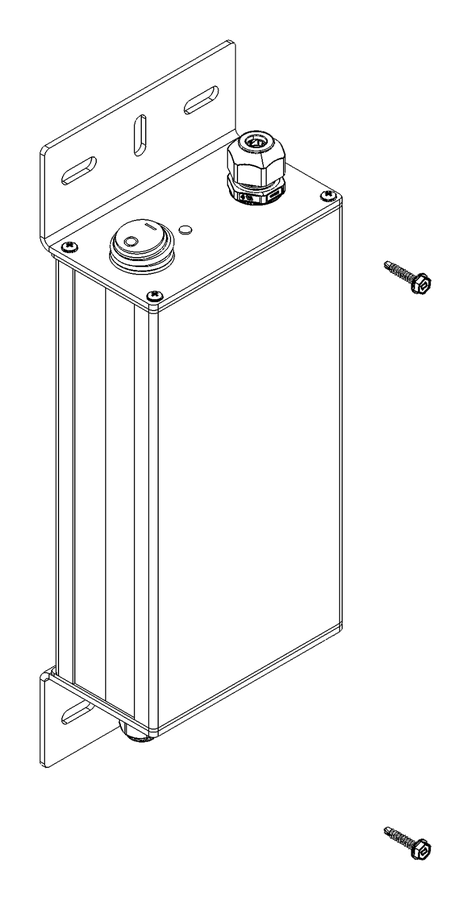

WAHU power supply CAD render — sealed aluminum enclosure with end brackets, cable gland, and switch

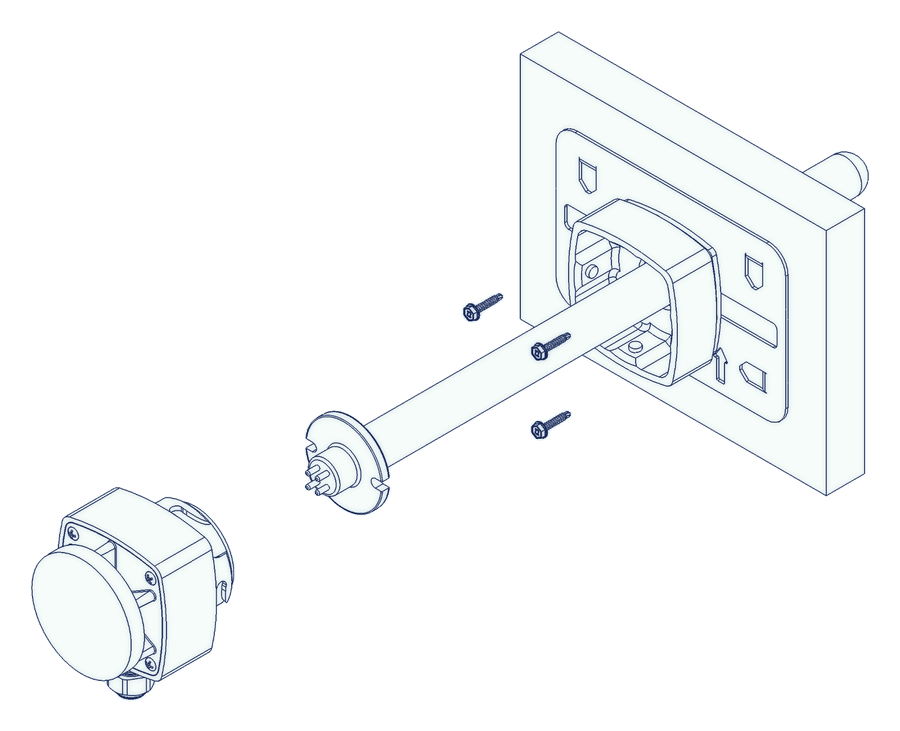

Exploded view of the lamp mount, duct plate, and self-tapping mounting screws
Engineered for the Install

Two install paths.
One kit.

AHU sheet metal or ductwork — the kit has the hardware for both. No improvising. No second trip to the supply house.

  • Flame-rated lamp mount. Plenum-grade material. Built for HVAC airflow.
  • Duct or sheet-metal install. Both paths supported out of the box.
  • Sure-seal lamp connection. No field-spliced wires. Plug, lock, move on.
The Lamps

15 inches of germicidal UV-C.

Low-pressure mercury vapor. Factory-matched to the ballast. Built for the AHU airstream. 24-month service cycle.

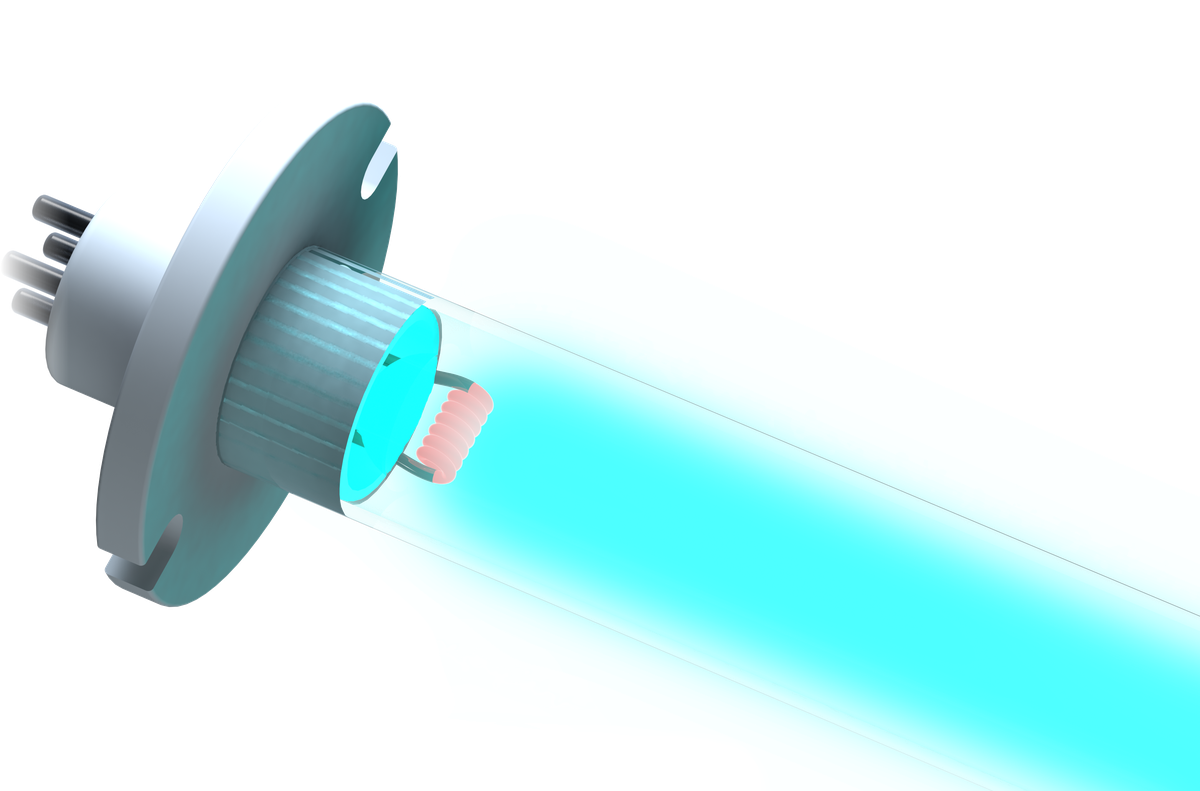

UV-C lamp side profile — standard-output low-pressure mercury vapor germicidal lamp
15" Active arc length
24mo Service interval
253.7nm Germicidal wavelength
2× Lamps per WAHU
Built Solid

We don't cut corners.
So you don't lose time.

Premium components. Sealed construction. Every unit tested. Install it once. Move to the next job.

◐

Lamp health at a glance

A light pipe brings system status to the AHU access door. BLUE: healthy. RED: lamp failed. Diagnose from across the room.

⌒

Industrial-grade switch

Sealed. Built to outlast the AHU. Audible click on every cycle — your tech knows it flipped without opening the cabinet.

▢

Built for the plenum

Anodized sealed aluminum enclosure, built for the AHU environment.

⊜

Cables that stay put

Premium sealed cable entries. Cables don't pull. Water doesn't get in. No emergency call for a loose lead.

⏚

Safety ground every time

Grounded the moment it mounts to the AHU. No extra wire. No extra step. Inspector happy. Homeowner protected.

⚮

Tested before it ships

Every unit passes ground bond, insulation resistance and hipot testing before it ships. You install what we've verified. QR-registered for years of traceability.

Inside the Kit

Everything for the install, in one box.

Open one bag at the AHU. Install in the order you need it. The homeowner sees a kit, not a shipping carton.

1
WAHU power supplyQC-passed and labeled at assembly
2
2× UV-C lampsFactory boxed, ready to install
3
2× lamp mountsRev 14, metal
4
Hardware kitScrews, WAGOs, wire nut, view port
5
Wire loom + tiesFor clean AHU cable routing
6
UV warning stickerWith install-date fields for service tracking
7
Install manualPrinted, written for working contractors
Built On

Components that have been around longer than we have.

Established components. Every unit tested. Every unit registered.

Proven ballast platform

Industry-standard UV-C platform. Millions of field hours.

Every unit tested

Ground bond, insulation resistance and hipot testing on every unit. No batch sampling. No skipped steps.

QR-registered

Serial, date, and test results tied to your install. Years of traceability.

UL Listed

Listed under UL file E217131. Every unit is electrically safety tested before it ships — ground bond, insulation resistance, hipot.

Get In Touch

Talk to us about a kit.

A few for your own customers, or a stocking program for your service routes. Either way — drop us a line.
